Joachim Schlosser: Development and Verification of fast C/C++ Simulation Models for the Star12 Microcontroller
In chapter 4 the practical experience part of the diploma thesis was discussed, the implementation and testing of the presented tasks took about 460 h.

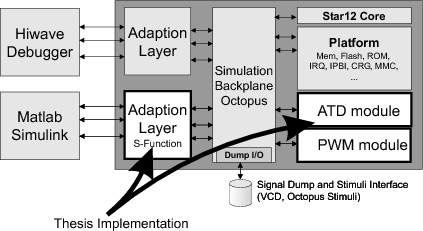

A summarizing visualization on what has been done, can be seen in Figure 3.21 on page 272. Both sides of simulation were covered: the development of models for simulation, and the attachment of a simulator engine to an application.
The figure shows – abstracted – the different components of the simulation technique: The two applications, Hiwave and Matlab as well as their adaptation layers, of which the lower one was topic of this thesis. Then the simulation backplane and the attached models, the existing ones and the two covered by the thesis, too.
